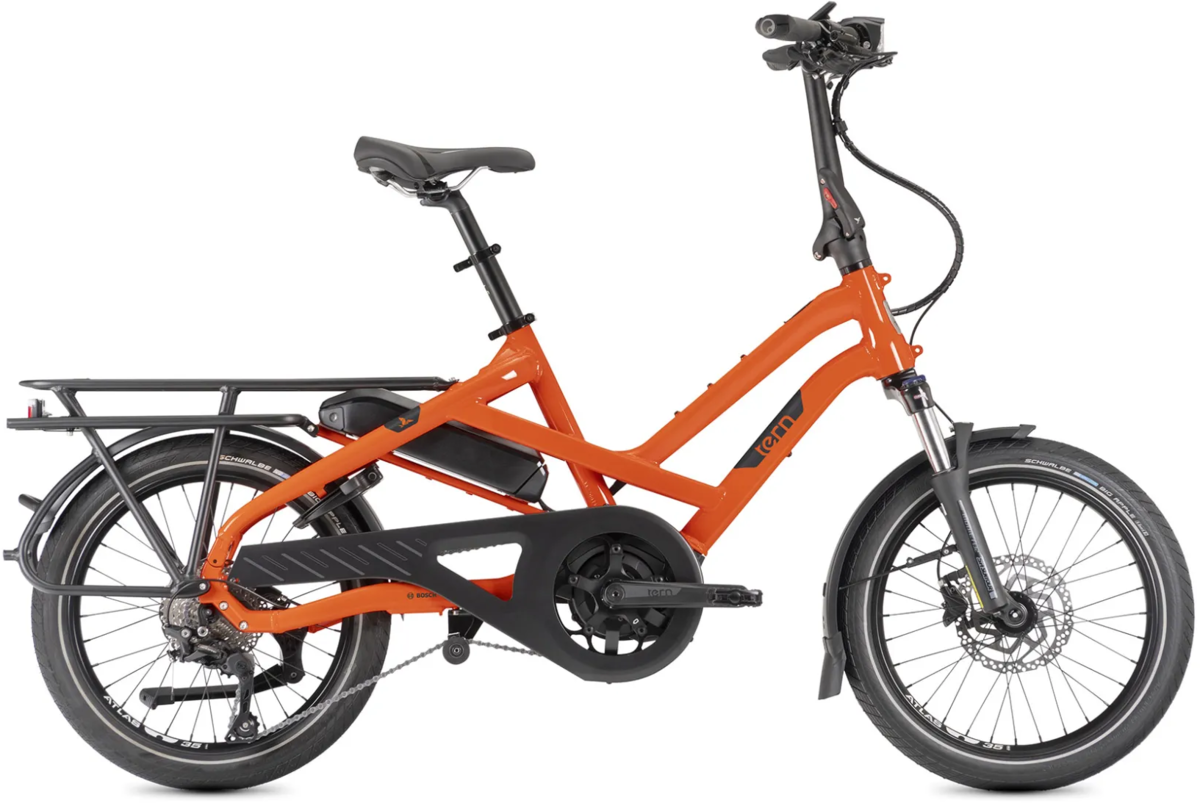

Tern HSD P10
Details
What makes it a P10?
- Class 1 Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
- Detachable and easy-to-understand Intuvia 100 display
- 1x10-speed Shimano Deore groupset with trigger shifter
HSD Highlights
- Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
- Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
- Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
- Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
- Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight
Specs
| Frame | Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg |
|---|---|
| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg |
| Wheels | Tern Atlas H, cargo wheel |
| Hubs |
Front: Novatec, Thru-axle, sealed bearings Rear: Novatec, sealed cartridge bearing, disc |
| Tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Bottom Bracket | Motor integrated |
| Crankset | Tern HSD custom |
| Shifters | Shimano Deore, 1 x 10 spd, trigger |
| Rear Derailleur | Shimano Deore Shadow+ |
| Cassette/Freewheel | Shimano 11-36T, 10 spd |
| Brakes |
Front: Tektro, hydraulic disc, 180 mm rotor Rear: Tektro, hydraulic disc, 160 mm rotor |
| Brake Levers | Tektro, hydraulic disc |
| Handlebars | Tern Sweep, 6061-AL, Tern Andros adapted |
| Tape/Grips | Ergon |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Headset | Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated |
| Seatpost | Tern Telescope, 34.9/30.9 mm, 2014-AL |
| Saddle | Tern Upright by Velo |
| Pedals | Urban with non-slip surface |
| Motor | Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) |
| Battery | Bosch PowerPack 545 |
| Controller/Display | Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock |
| Charger | 220V, 4A (EU); 100-240V, 4A (US) |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Black / One Size / 20-Inch | 810067161312 | 12-91-80 | 210000032756 |
| Orange / One Size / 20-Inch | 810067161336 | 12-91-81 | 210000032758 |
