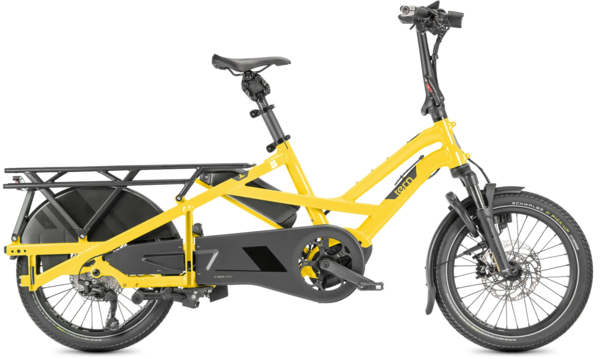

Tern GSD S10
Details
What makes it an S10?
Bosch® Smart System with Kiox 300 color display enhances your eBike experience with smart features for theft protection, ride customization, navigation, and more!
Bosch Anti-Lock Braking System enables safer, more efficient braking
Dual-battery compatible, ready to power through heavy use and long distances of up to 196 km (122 mi)
Shimano® Deore 1 x 10-speed hub for smooth, efficient shifting
GSD highlights:
- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
- Magura® 4-piston hydraulic disc brakes deliver precise and responsive stopping power
- Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
- Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
- UL 2849-certified e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability
Suggested Rider Height:
153 - 200 cm (60.2 - 78.7 in)
Max Load Weight:
210 kg (463 lb)
Max Rider Weight:
130 kg (286.6 lb)
Specs
| Frame | Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg |
|---|---|
| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 34 mm stanchions, Thru-axle, DIN 79010 certified: 210 kg |
| Wheels | Tern Atlas, heavy duty cargo wheel |
| Hubs |
Front: Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings Rear: Tern Atlas, Cooling Fins, Boost Thru-Axle, Syntace X-12 standard |
| Spokes | Stainless steel |
| Tires | Schwalbe Pick-Up, cargo-optimized, Super Defense puncture protection, Reflex |
| Crankset | Tern GSD, forged 6061-AL DH crankarm |
| Shifters | Shimano Deore, 1 x 10 spd |
| Rear Derailleur | Shimano Deore Shadow+ |
| Cassette/Freewheel | Shimano 11-42T, 10 spd |
| Chain | KMC 10 spd, for eBike, EPT corrosion resistant coating |
| Brakes | Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor |
| Brake Levers | Magura MT-C e-stop, hydraulic, with brake light sensor |
| Handlebars | Tern Sweep, 6061-AL, Tern Andros adapted |
| Tape/Grips | Ergon |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Headset | Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated |
| Seatpost | Tern VLT (Very Large Telescope) with Cane Creek suspension and LightAction levers |
| Saddle | Tern GSD by Velo |
| Pedals | Urban with non-slip surface, sealed bearings |
| Accessories & Extras |
Bell: Pitch Plus, brass Chainguard: Tern GSD, full chain cover Kickstand: Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology Front Light: Ignis Headlight, Hi/Lo beams, 700 lumens Rear Light: RearStop Brake Light, Always on Fenders: F: Aluminum R: GSD wheel guard Rack(s): Atlas G, 100 kg (220 lb) capacity Frame Lock: ABUS or AXA, keyed-alike with Bosch battery On-board Charging: USB-C, 5V/2.4A, 12W max |
| Motor | Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) |
| Battery | Bosch 545 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity |
| Controller/Display | Bosch Kiox 300 w/ LED remote, connectivity with Bosch eBike Flow IOS/Smartphone app, electronic bike lock |
| Charger | 220V, 4A (EU); 100-240V, 4A (US) |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Schoolbus Yellow / One Size / 16-inch | 810067163804 | 12-91-50 | 210000035077 |
| Beetle Blue / One Size / 16-inch | 810067163781 | 12-91-51 | 210000035080 |
| Pearl White / One Size / 16-inch | 810067164016 | 12-91-52 | 210000035079 |
